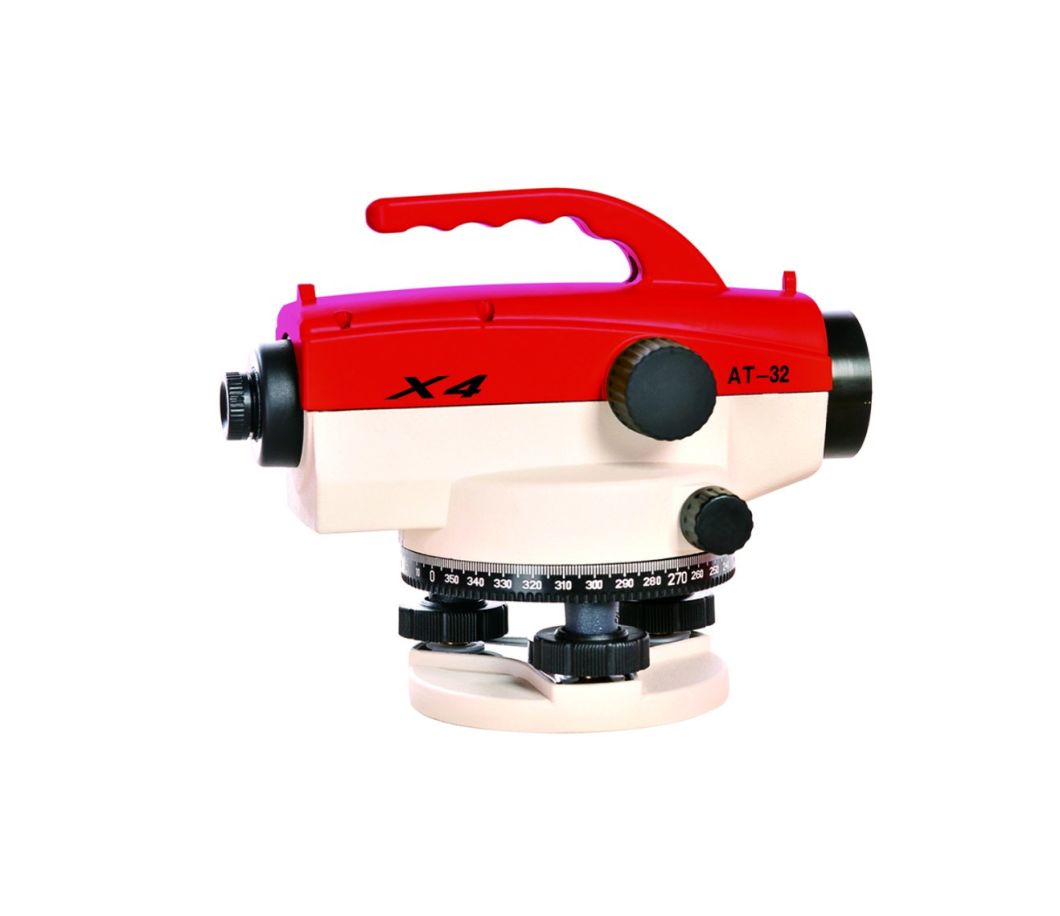

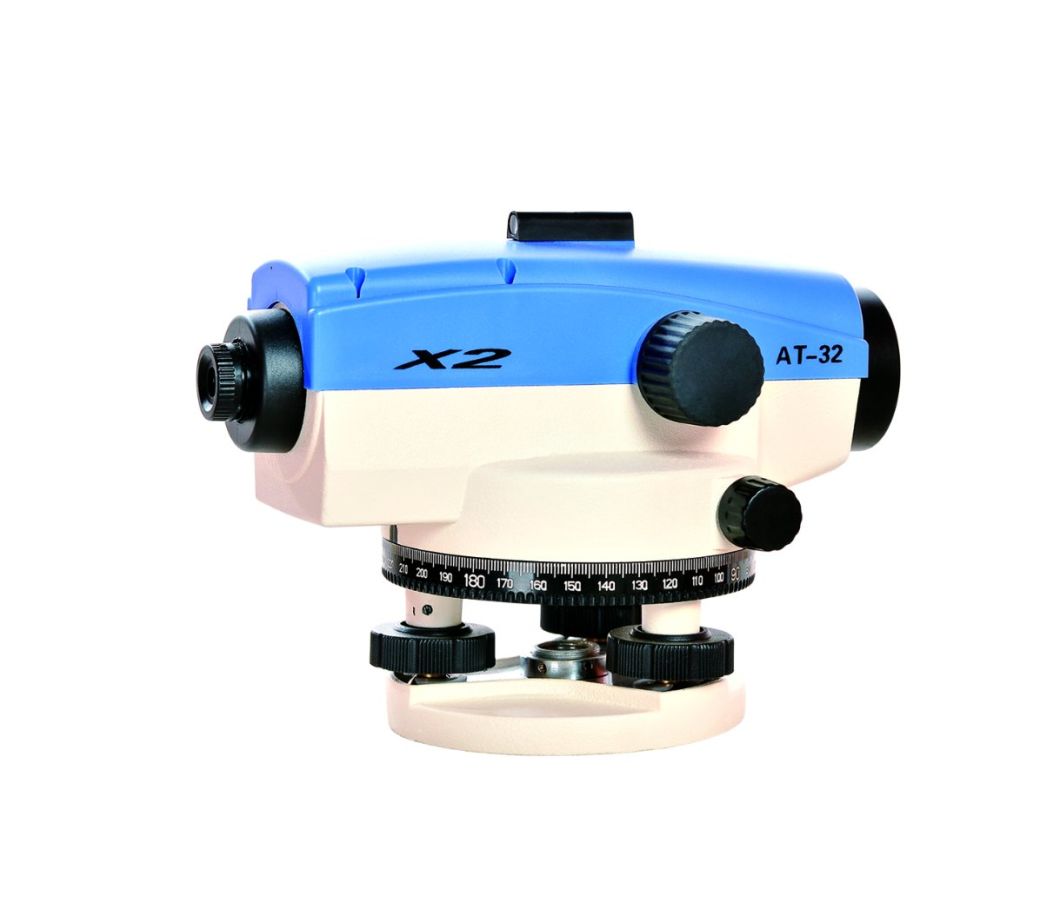

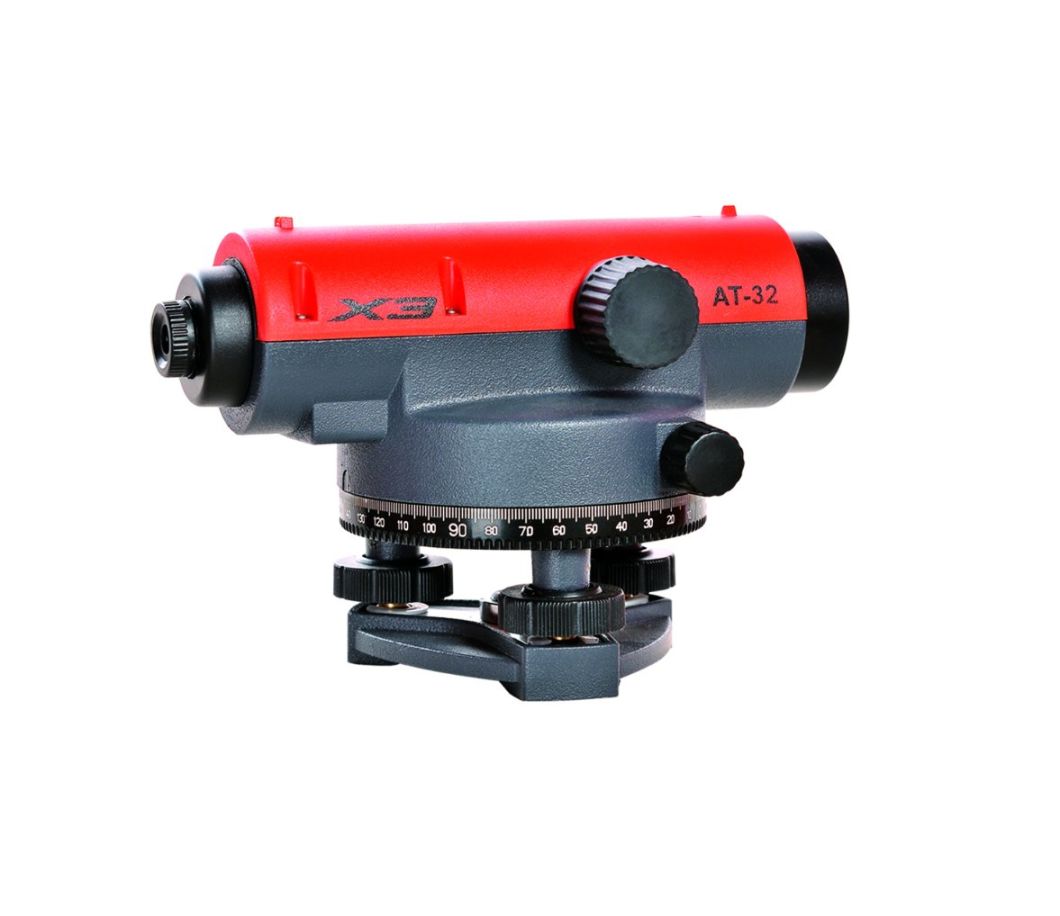

Optical Auto Level

Product Introduction

auto level measuring instruments,
Optical Auto Level
1.shunfeng 1km deviation 0.5mm with micrometer
2.top dust proof and water proof capability
3.Ultra clear lens for long range observation


This instrument is mainly suitable for high precision survey of engineering including construction project, mines, road, bridge, etc. It possesses convenient operation, clear image, water proof facility, type X air or magnetic damping and compensation mechanism, and precision of compensator. It is speedy and reliable as well.

Type X2 X3 X4
Standard deviation per kilometer double-run 1.5mm 1.5mm 1.5mm
Telescope imaging Positive image
Magnification 32X 32X 32X
Clear objective aperture 36mm 36mm 36mm
Field of view 1°20'
Shortest focusing distance 0.4m
Stadia multiplication constant 100
Stadia adding constant 0
Circular bubbke precision 8'/2mm
The division unit of dial 1°or 1gon
Working scoper for the equipment ±15'
Setting accurary ±0.3" ±0.3" ±0.3"
Screw thread connected to tripod M16 or 5/8" M16 or 5/8" M16 or 5/8"
Water proof IP4

Optical Auto Level
Optical Auto Level
Optical Auto Level
