Aluminium Tripod for Total Station

Availability:
Quantity:


About Us
Nanjing Shunfeng Surveying's Located in the Jiangning economy development park of Nanjing, Jiangsu province. Shunfeng mapping equipment factory has been manufacturing surveying and mapping instruments for more than 15 years. We have well-found producing facilities, enough workshop, and over four hundred skilled workers
..Hundreds of our products are exportedto Australia,Russia, Colombia,
Ukraine,Georgia, the United states,Southeast Asia and so on more than 60 countries and regions.

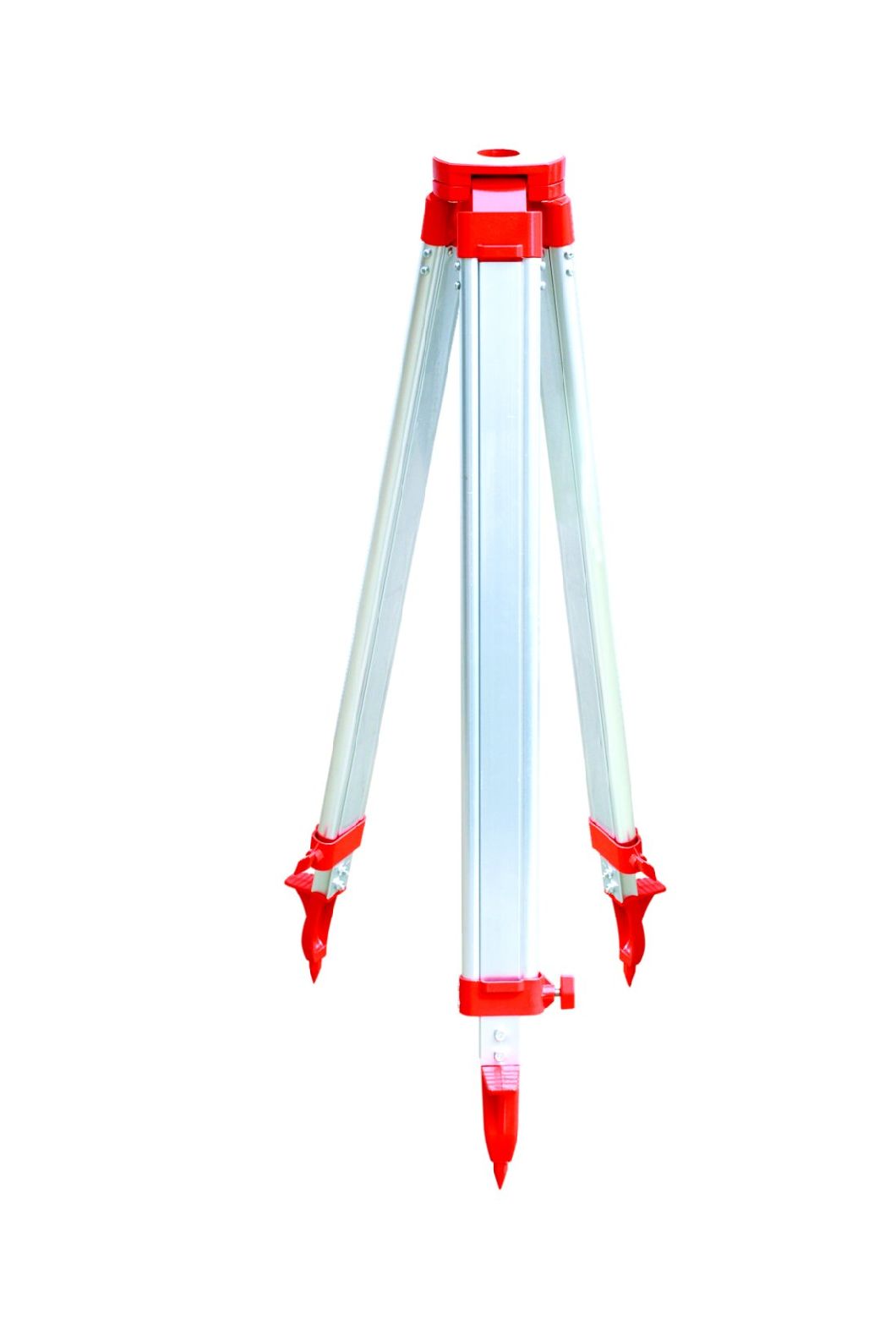

Aluminium Tripod for the auto level, theodolite and total stations.
For more details, please refer to our website or our general catalogue.
1 This instrument tripod accommodates 5/8" x 11 instruments.
2 It has telescoping legs, allowing for setup at various heights.
3 This surveying tripod is ideal for mounting lasers, total stations
4 The tripod extends 66 inches (1.7 m) and features a flat head and twist lock.
5 Weighs 4.2kgs

Model Fully Extended Length Retracted Length Thread Head Size Head Bore Weight
J-1A 1700 1070 5/8" or M16 142 58 4.2kg
JZ-1A 1700 1070 5/8" or M16 142 58 5kg
J-1E 1700 1070 5/8" or M16 142 58 4.5kg
JZ-1E 1700 1070 5/8" or M16 142 58 5.3kg
J-1 1650 1020 5/8" or M16 142 58 3.9kg
JZ-1 1650 1020 5/8" or M16 142 58 4.3kg
JR-1 1650 1020 5/8" or M16 142 58 4.1kg
J-1B 1650 1020 5/8" or M16 142 58 4kg
J-1S 1650 1020 5/8" or M16 142 58 3.9kg
J-1X 1650 1020 5/8" or M16 142 68 3.9kg
J-2 1620 1000 5/8" or M16 132 58 3.7kg
J-3A 1600 950 5/8" or M16 112 38 3kg
J-3 1600 950 5/8" or M16 112 38 3kg
JR-3 1600 950 5/8" or M16 112 38 3.2kg
JZ-3 1600 950 5/8" or M16 112 38 3.3kg
JG-1 1500 650 5/8" or M16

1.3kg
