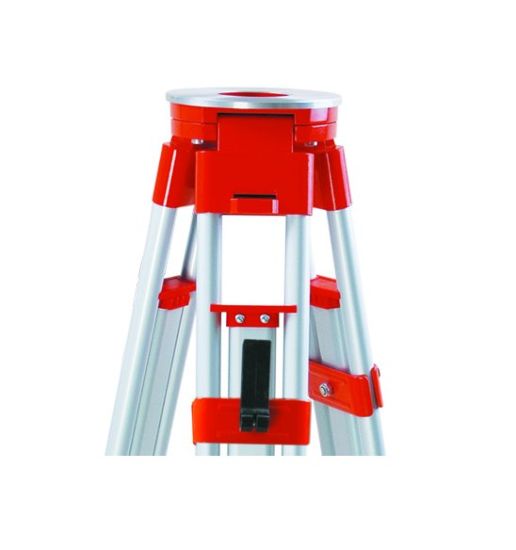

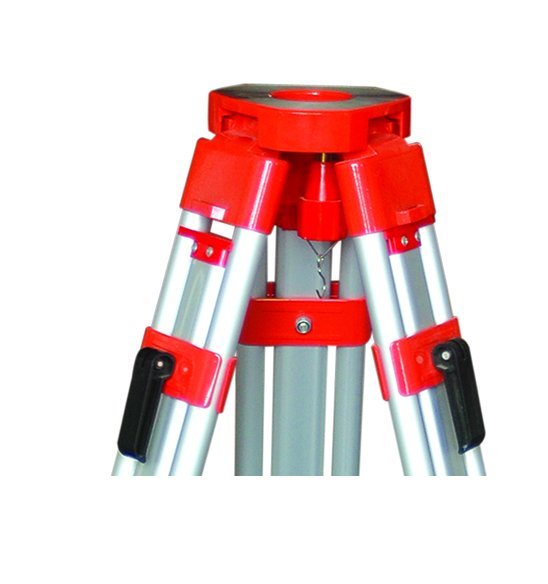

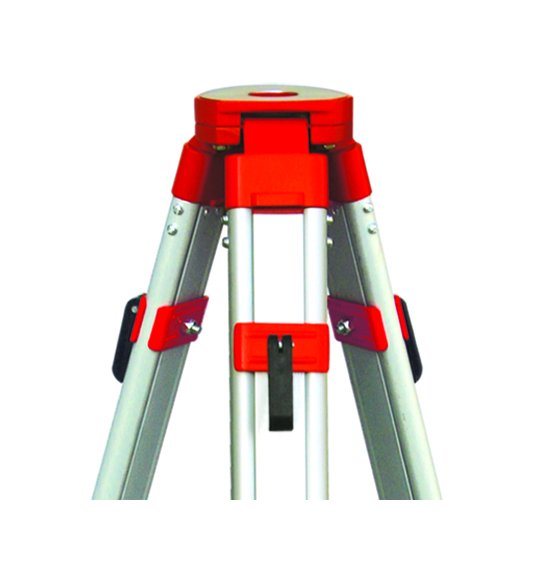

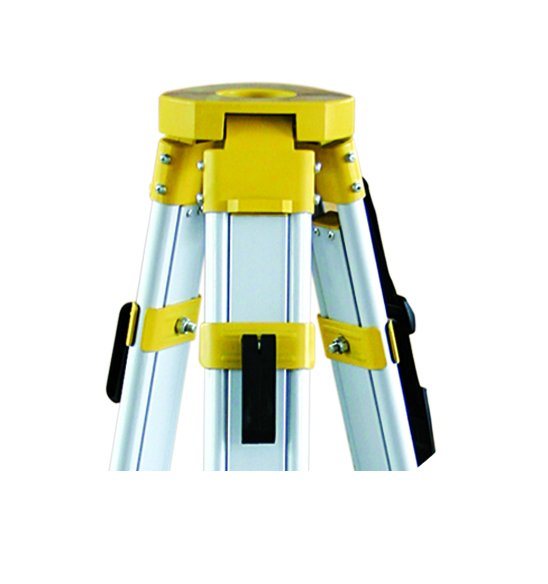

Aluminium Tripod (JZ-1)

Quantity:



Inquire Add to Basket

Product Description

Aluminium Tripod for the auto level, theodolite and total stations.
For more details, please refer to our website or our general catalogue.
1 This heavy-duty aluminum tripod offers stability and accuracy. It's built to last with heavy construction throughout; It's designed to withstand rigorous field conditions.
2 It features double locks(quick-release and twist lock), a flat head, a 5/8" x 11 thread adapter, square legs, orange hardware and shoulder strap.
3 The legs extend 1650mm and retract 1020mm.

Model	Fully Extended Length	Retracted Length	Thread	Head Size	Head Bore	Weight
J-1A	1700	1070	5/8" or M16	142	58	4.2kg
JZ-1A	1700	1070	5/8" or M16	142	58	5kg
J-1E	1700	1070	5/8" or M16	142	58	4.5kg
JZ-1E	1700	1070	5/8" or M16	142	58	5.3kg
J-1	1650	1020	5/8" or M16	142	58	3.9kg
JZ-1	1650	1020	5/8" or M16	142	58	4.3kg
JR-1	1650	1020	5/8" or M16	142	58	4.1kg
J-1B	1650	1020	5/8" or M16	142	58	4kg
J-1S	1650	1020	5/8" or M16	142	58	3.9kg
J-1X	1650	1020	5/8" or M16	142	68	3.9kg
J-2	1620	1000	5/8" or M16	132	58	3.7kg
J-3A	1600	950	5/8" or M16	112	38	3kg
J-3	1600	950	5/8" or M16	112	38	3kg
JR-3	1600	950	5/8" or M16	112	38	3.2kg
JZ-3	1600	950	5/8" or M16	112	38	3.3kg
JG-1	1500	650	5/8" or M16			1.3kg
